RDF400

RDF400 angle radar reflector

Manufacturing the RDF400 angle radar reflector is equipped with lifeboats, liferafts, to enhance the small radar target echo to the passive device. It consists of each conductive plane perpendicular to each other cross, constitute a larger portion of the incident wave is parallel to the direction of incidence reflection. Its performance symbol International Organization for Standardization ISO8729: 1997 (E) technical requirements and the International Maritime Organization IMO Resolution A-384 (X) the provisions of the resolution.

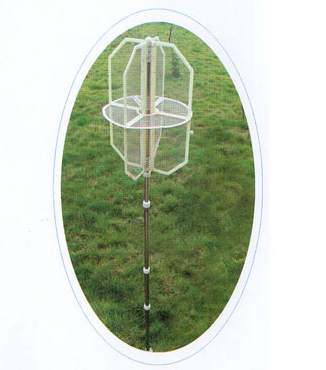

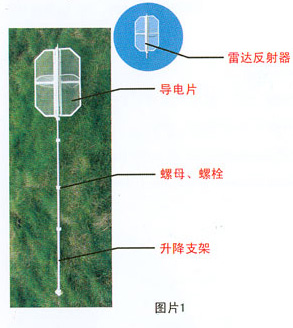

Structure: (see Figure) Structure,: (See picture 1)

Second, the main technical indicators: the Main technical index
(a), the reflection area ≥ 40 m (see Photo 2)
（1）Reflection area≥40㎡（See picture 2）

(B), the total mass ≤ 1.6Kg
(2)Total weight≤1.6Kg

Installation method：

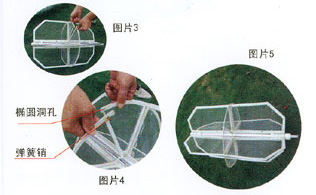

Take reflection equippment out o packing bag.make the conducting flake surround the stainless steel rctating axis and outspread as 8 right-angle triangle up and down,then insert the spring pin into the ellpse hole and then screw by 90 °to lock(See picture 3、4&5)

（2）Pull out a stainless beanpcle in the center of the stainless steel rotating axis by 20cm.then screwlight lastic bolt&nut(See picture 6)

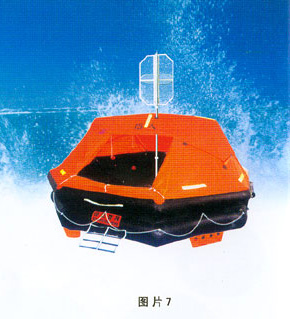

（3）Inset the 20cm long beanpole connected to refletion equippment to the hole on top sail of the raft,then insert it to the stainless steel up-and-down bracket in the body of the raft,at last screw tight all the plastic bolt & nut. make sure they firmly fixed to the bottom of the raft.(See picture 7)

Propositonal installation height:2m from level
Notice
（1）Installation Method:To avoid the shadoe area.
（2）Sfety Distance of Compass:2m.
